The GE Enbrighten 14288 is an in-wall duplex receptacle with one Z-Wave-controlled outlet and one always-on outlet. A compatible Z-Wave hub enables remote control and scheduling; installation requires line, neutral and ground connections.
Outlet functions
This duplex receptacle has a Z-Wave-controlled bottom outlet and an always-on top outlet. Both have tamper-resistant shutters. The built-in Z-Wave Plus radio acts as a mesh repeater; the stated range of up to 150 feet is line-of-sight and depends on the installation.
Features & Benefits
- One Z-Wave controlled outlet + one always-on pass-through outlet — smart control where you need it, continuous power where you don't
- Z-Wave Plus radio; stated range up to 150 feet line-of-sight.
- Acts as a Z-Wave mesh repeater; coverage depends on the network and installation.
- Tamper-resistant shutters help restrict insertion into a single slot; they are not a guarantee against electrical injury or a substitute for supervision.
- Voice control compatible — works with Amazon Alexa and Google Assistant via a compatible Z-Wave hub
- Requires a compatible Z-Wave hub. Check the hub maker’s support for model 14288 / ZW1002 and the functions you need before purchase.
- In-wall installation — for a compatible single-gang junction box
- 1800W (15A) total resistive load capacity
- The manufacturer manual describes a two-year limited warranty; see the warranty qualifications below.
Product Details
- Brand: Enbrighten / GE (General Electric)
- Manufacturer: Jasco Products Company LLC (under license from General Electric)
- Product Line: Enbrighten Z-Wave Series
- Model Number: 14288 / 14288-5 / ZW1002
- Color / Finish: White / Gloss
- Form Factor: In-Wall Duplex Receptacle (Single-Gang)
- Country of Origin: China
Technical Specifications
- Wireless Protocol: Z-Wave Plus (908.4 / 916 MHz)
- Operating Voltage: 120VAC, 60Hz
- Max Total Resistive Load: 1800W (15A)
- Max Z-Wave Outlet Load: 960W Incandescent / ½ HP Motor / 1800W (15A) Resistive
- Wireless Range: Up to 150 ft (line of sight)
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Wiring Terminals: Line, Neutral, Ground
Installation Instructions
- Turn off power at the main circuit breaker before beginning installation.
- Remove the existing receptacle from the junction box.
- Connect the Line, Neutral, and Ground wires to the corresponding terminals on the smart outlet.
- Secure the outlet into the junction box and attach a wallplate (sold separately).
- Turn power back on and pair with your Z-Wave hub following your hub app's instructions.
Compatibility Notes
- For indoor use only.
- Requires a neutral wire in the wall junction box.
- Requires a Z-Wave certified home automation hub for smart control and scheduling.
- Confirm model 14288 / ZW1002 compatibility and supported features with your particular Z-Wave hub before purchase.
- Voice control via Amazon Alexa and Google Assistant requires a compatible Z-Wave hub.
Safety Notes & Condition Notes
- Risk of electric shock — always disconnect power at the breaker box before servicing or installing.
- Use with copper wire only.
- Do not exceed electrical load ratings.
- Z-Wave Plus Certified
- FCC Part 15 Compliant
Warranty
Jasco’s manual describes a two-year warranty for manufacturing defects from the original consumer purchase date, limited to product repair or replacement, with stated exclusions and applicable rights. Manufacturer coverage depends on its terms and purchase eligibility; this resale listing does not promise coverage for every purchaser.
Product images

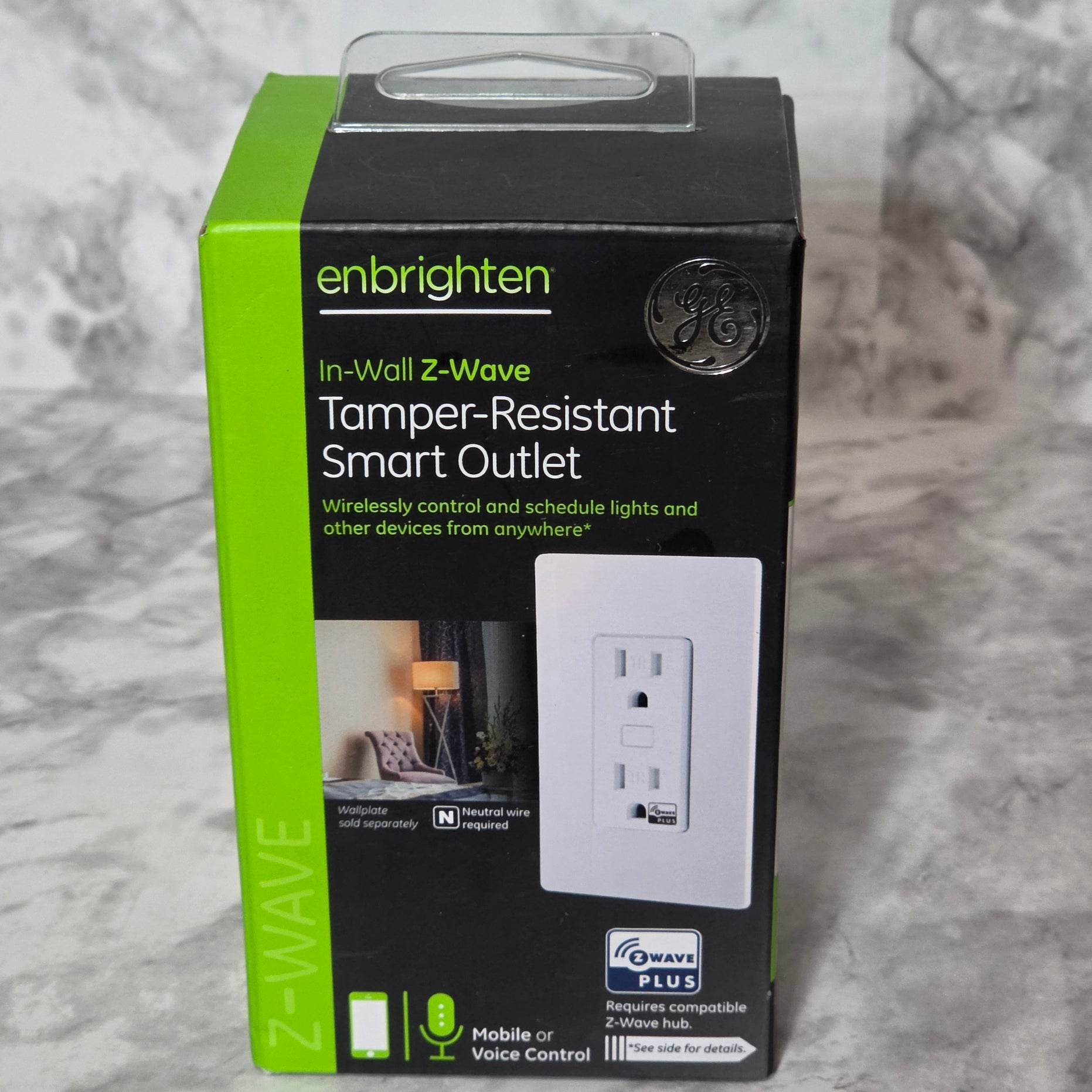

Actual product photography shows the item. Lifestyle images are AI-generated for visual context only.
Frequently Asked Questions
Do both outlets on this receptacle have Z-Wave smart control?
No. The unit contains one Z-Wave controlled grounded outlet (bottom) for wireless scheduling and automation, and one standard always-on grounded outlet (top) for continuous pass-through power.
Does this smart outlet require a neutral wire for installation?
Yes, in-wall installation requires hardwired connections including a neutral wire, line wire, and ground wire.
Does it require a Z-Wave hub? Yes. Wireless control, scheduling and voice integrations require a compatible hub and its supported features. Check the exact hub’s compatibility before purchase.
What does tamper resistant mean? The receptacle has shutters designed to restrict insertion into an individual slot. It is not childproof, and the feature does not eliminate electrical hazards.
Legal Notice
More4less Outlet sells authentic, brand-new products acquired through lawful liquidation channels under the First Sale Doctrine (17 U.S.C. § 109). More4less Outlet is not affiliated with, endorsed by, or sponsored by GE, General Electric, Enbrighten, or Jasco Products Company LLC. All brand names, trademarks, and product names are the property of their respective owners and are used solely for identification purposes.
Additional manufacturer safety guidance
Disconnect power and verify it is off before wiring. The manual specifies copper conductors, 14 AWG or larger, rated at least 80°C; consult a qualified electrician for aluminum wiring. There are no user-serviceable parts. Do not power or control medical/life-support equipment, electric heaters, or appliances made hazardous by unattended or automatic activation.
